Description:
The Long Thread Cable Gland made from brass (copper) material is mainly characterized by its superlong thread. They are available in lengths from 15mm to 50mm (other lengths can be customized), they are designed to meet the installation requirements of different panel thicknesses. it is easy-to-assemble and is used to connect cable to terminal equipment (electrical distribution box) and provide a good strain relief to prevent the cable from pull-out and protect electrical or electronic components inside the equipment from ingress of dust, water, liquid,etc.
About The Item:
(1) Premium Quality: our these waterproof cable glands are made of brass (copper) material, durable and long-lasting, effectively resistant to UV, moisture, water, aging, oxidation, corrosion and common solvency, it boasts unparalleled protection for your cables, offering reliability and security that you can depend on.

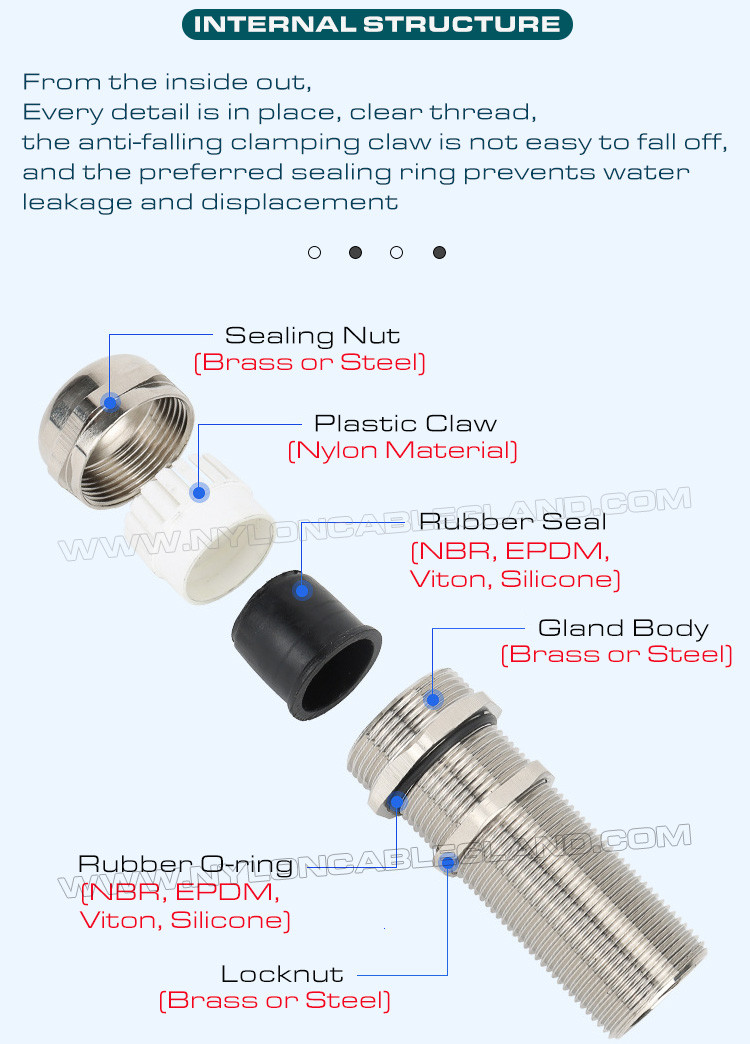

(2) Strongly Waterproof: IP68/IP69K waterproof protection is offered, each cable gland consists of a lock nut, an o-ring, a body, a seal and a sealing nut. The o-ring is made from black silicone rubber, which can better protect your electrical equipment.
(3) Secure and Reliable: our cable glands provide a secure and safe connection for your wiring. Each cable connector comes with a o-ring or gasket, IP68/IP69K waterproof ratings protect your project from dust, water, and other contaminants.
(4) Easy Installation: installation can be completed by one person, no special tools. Just need to insert the cable through the cable gland, then screw the sealing nut and lock nut, the cable will be tightly fixed, but no need to disassemble.

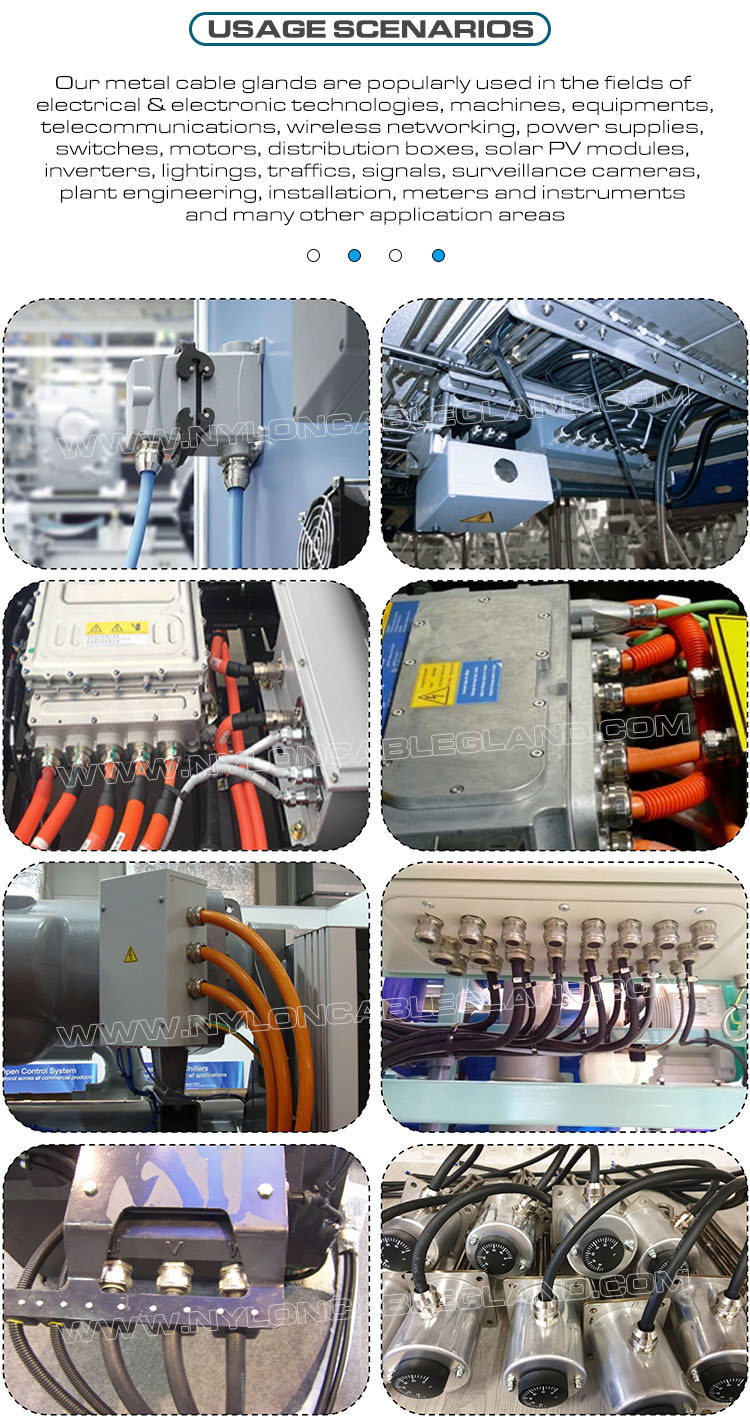

(5) Wide Applications: whether you need waterproof cable pass through for your home, office, or industrial project, our cable glands have got you covered, providing a versatile solution for all your wiring.
Information:
| Brand name: | Yueqing Sino Cable Gland Factory or OEM |
| Place of origin: | Zhejiang, China |
| Product name: | Long Thread Cable Gland, IP68/IP69K Brass Metal Cable Glands with Extralong Thread PG7~PG48 & M12~M63 for Thick Panel |
| Sizes: | * PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 * M12x1.5, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M24x1.5, M25x1.5, M27x1.5, M30x1.5, M32x1.5, M36x1.5, M40x1.5, M50x1.5, M63x1.5, M64x1.5 |
| Materials: | Sealing Nut, Locknut & Body are made from brass material |
| Plastic Insert are made from polyamide material |
| Seal & O-ring are made from NBR or EPDM rubber |
| Surface: | Polishing |
| Color: | Metallic silver |
| Certifications: | CE, ROHS, REACH, IP68, IP69K |
| Waterproof rating: | IP68 / IP69K (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Ultralong thread |
| Thread type: | According to the standard DIN40430 / EN60423 |
| Working temp.: | Static: -40℃ to100℃, short-term:120℃. Dynamic: -20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 2,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | (1) 100 pieces per bag, 50 pieces per bag, 20 pieces per bag. (2) 100 pieces per color box, 50 pieces per color box. (3) special packaging can be customized as requested. |
|
|
Long Thread Cable Gland, IP68/IP69K Brass Metal Cable Glands with Extralong Thread PG7~PG48 & M12~M63 for Thick Panel Images
|
