Spiral Cable Glands, IP68, Brass Copper, PG7~PG21 & M12~M30, Protection Anti-flex, Anti-bend, Anti-kink and Anti-twist

Name: Spiral Cable Glands IP68 Brass Copper PG7PG21 amp M12M30 Protection Antiflex Antibend Antikink and Antitwist
Brand: Yueqing Sino Cable Gland Factory
Price: 1 USD

Buy cheap Spiral Cable Glands, IP68, Brass Copper, PG7~PG21 & M12~M30, Protection Anti-flex, Anti-bend, Anti-kink and Anti-twist product

Brand Name : Yueqing Sino Cable Gland Factory

Model Number : PG7 ~ PG21 & M12x1.5 ~ M30x1.5

Certification : CE, ROHS, REACH, IP68

Place of Origin : Zhejiang, China

MOQ : 100pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000000pcs per month

Delivery Time : 8-12 days

Packaging Details : 100pcs per polybag, 50pcs per polybag, 10pcs per polybag (special packing is available on request)

Material : Nickel-plated Brass

Plastic insert : UL-certified PA6, 94V-2

Seal & O-ring : Oil-resistant NBR (available in weatherproof EPDM or Silicone rubber)

Spiral spring : Stainless steel 301

Standard colors : Metallic silver

IP Protection : IP68 (when the cable diameter is within the cable range and assemble the O-ring)

Features : Prevent cables from excessive bending or breakage

Contact Now

Functions & Applications:

Designed with anti-bending spiral spring, corrosion-proof spiral Metal electrical cable glands IP68 with anti-flex protection offer excellent cable protection against excessive twist at the bending point to reduce the risk of break to avoid electric leakage. With the characteristics of strong tensile strength, high sealing performance, good security and stability & sustainable submersion in the water 50 meters, such Glands are widely applied for connecting and fastening flexible cables or wire on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, surveillance cameras, plant engineerings, installations, meters and instruments, etc.

Our Advantages:

(1) Direct factory selling products at factory prices.

(2) All our products are friendly to earth (green products).

(3) High quality ensures long service life for indoor and outdoor applications.

(4) All our cable glands reach IP68 liquid tight protection.

(5) Timely delivery and good service are our principle.

(6) Free samples available.

(7) Special cable glands can be customized as per customer's samples or drawings.

(8) OEM services can be available.

About Us:

We are one of the most professional manufacturer of Cable Accessories in China. Currently we manufacture and export plastic cable glands, metal cable glands, stainless steel cable glands, corrugated tubes, pipe fittings, plastic cable ties, metal cable ties, cable clips, etc. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!

Product Descriptions:

Brand name:	Sino Cable Gland Factory
Place of origin:	Zhejiang, China
Product name:	Corrosion-proof Spiral Metallic Electrical Cable Glands IP68 with Anti-flex Protection
Sizes available:	PG7, PG9, PG11, PG13. 5, PG16, PG21 M12x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M25x1.5, M27x1.5, M28x1.5, M30x1.5
Raw material:	Nickel-plated Brass for Metal Parts
	UL-approved nylon 66, 94V-2 for Plastic Insert
	Stainless Steel 1.4310 / ASTM301 / SUS301 for Sealing Nut (Spiral Protector)
	NBR for Sealing parts (available in weatherproof EPDM or Silicone rubber)
Standard colors:	Metallic color
Main advantages:	Exquisite workmanship and beautiful good-looks, unique design of claws and seals can provide strong strain relief and protect cables from excessive bending and twisted to reduce the risk of failure. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
Certifications:	CE, ROHS, REACH, IP68
IP protection:	IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Thread lengths:	Short thread & long thread are available
Thread system:	PG: According to Germany standard DIN40430 Metric: according to the standard EN60423
Operation temp.:	Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
OEM service:	Yes, available
Supply capability:	1,000,000 pieces per month
Minimum quantity:	100 pieces
Samples available:	Free samples available upon request
Delivery time:	Normally 5-7 days after confirmation of orders
Payment terms:	T/T in advance, Western Union, L/C at sight
Shipment terms:	EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
Export packing:	50 pieces / bag, 50pieces /color box, special packing can be customized as requested

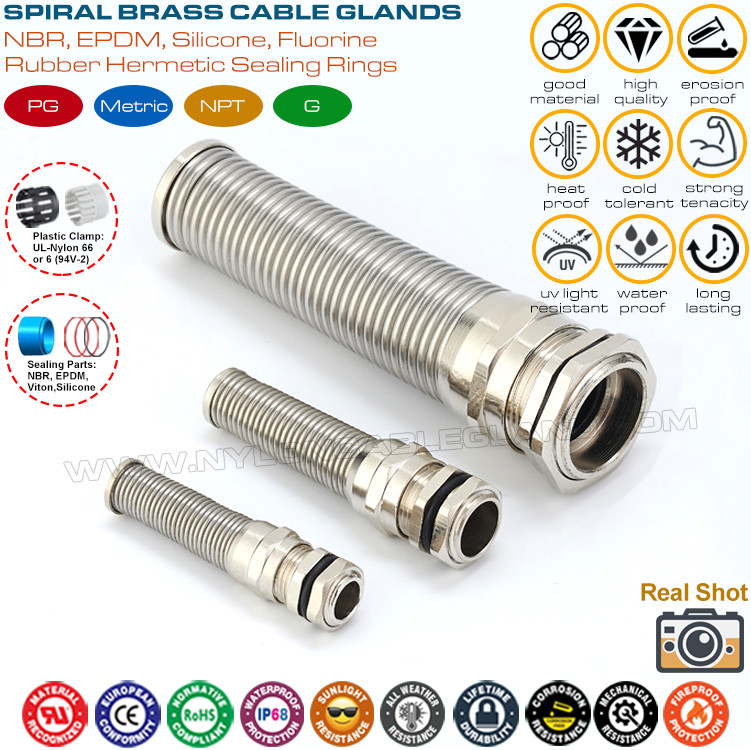

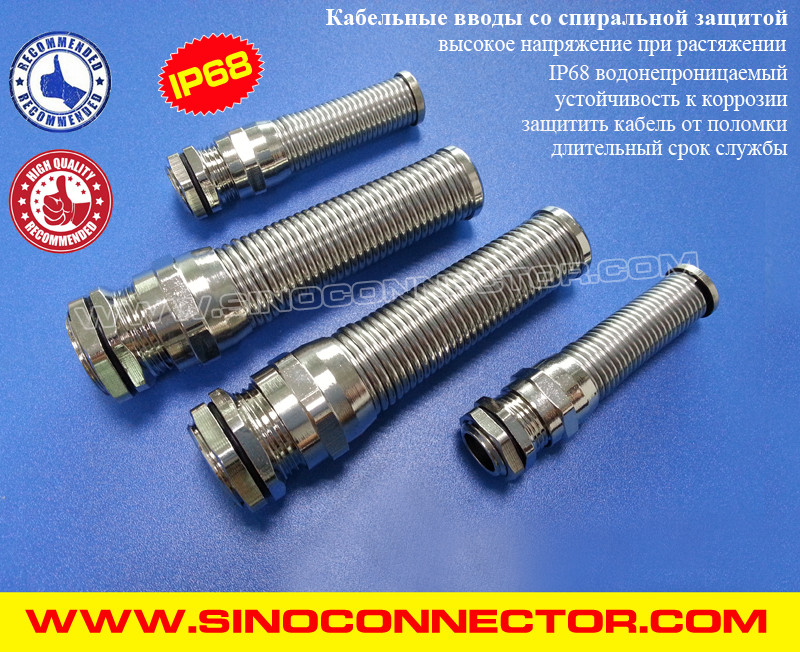

Product Pictures:

Spiral Cable Glands, IP68, Brass Copper, PG7~PG21 & M12~M30, Protection Anti-flex, Anti-bend, Anti-kink and Anti-twist

Spiral Cable Glands, IP68, Brass Copper, PG7~PG21 & M12~M30, Protection Anti-flex, Anti-bend, Anti-kink and Anti-twist Images
